NBM ENCLOSED MODULAR DUST COLLECTOR

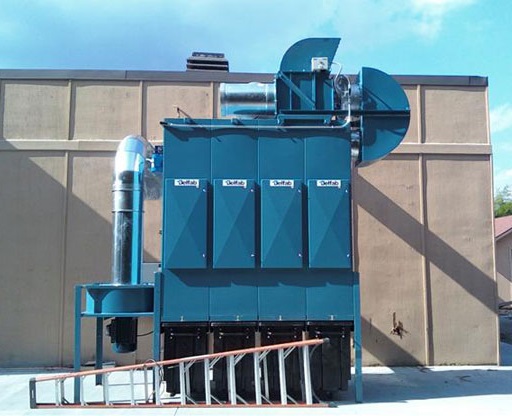

The NBM dust collector is designed to filter volumes of air varying from 2500 CFM to 12000 CFM. This model is ideal for moderate to large dust volumes in either coarse (cutting dust) or fine (sanding dust) material. This dust collector is suitable for an outdoor installation.

MODULAR FILTER TECHNOLOGY

The NBM system design integrates BELFAB modular filter technology. This feature makes it possible to increase filtration surface cost effectively, with the introduction of additional filter modules.

This expandable filter module capability makes it possible to offer large filtration surfaces, capable of developing an air to cloth ratio better than 6:1. This feature makes it ideal for dust collection application involving moderate to large dust volume in either coarse or fine material.

UPGRADABLE BLOWER

The BELFAB dust collector modular series comes with our standard patented upgradable blower, that makes it possible to increase blower performance by simply replacing the motor and impeller within the same fan housing. Our optional HUMMER 1800 RPM fan offers super quiet operation at up to 9000 CFM. In an application where a low sound level is required (under 84 db), BELFAB HUMMER series is available for application ranging from 10HP to 30HP (9000 CFM). The optional RSC blower series from Belfab is more performant and more efficient. The RSC fan wheel is specially designed for systems transporting moderated loads of dust, powder and particles.

*up to 5000CFM for indoor installation. Above 5,000 CFM an outdoor set up is required  (NFPA 664)



Details

FEATURES

  • Heavy duty material handling (centrifugal fan)
  • Premium efficiency TEFC motor, CSA-UL or CSA-US approved
  • AMCA Class B (standard) & Class C (Hummer) anti-spark blower assembly
  • High efficiency polytwill filter bags with efficiency level of 99.9982% (meets norm PM 2.5)
  • A manual shaker per module
  • 2 quick clamps per module
  • 10 disposable plastic bags per module
  • Either push or pull (optional) operation configuration
  • Explosion vent (meet NFPA 68 standards)
  • Maintenance access door per filter module

SAFETY ACCESSORIES

  • Explosion vent conduit
  • Tee derivation
  • Abort damper
  • Spark detection system
    (FM approved)
  • Fire damper
  • Dust collector sprinkler
  • Backdraft damper
  • Explosion vent deflector

OPTIONS

  • Dust level detector
  • Outlet silencer
  • Filter pressure gage
  • Control panel with automatic shaker
  • Pre-wired starter
  • Polyfelt filter bags



FILTER MODULES ARRANGEMENTS

Number of filter modules 1 2 3 4 5 6
Filtration surface (sq.ft.) 165 330 495 660 825 990
Dimension   (W x D X H) in. 48” x 48” x 144” 72” x 48” x 144” 96” x 48” x 144” 120” x 48” x 130” 144” x 48” x 130” 168” x 48” x 130”
Module weight (lbs) 690 1 040 1 390 1 740 2 090 2 444

(When equipped with a hummer blower module, add 18” to width)



STANDARD BLOWER – 3600RPM HUMMER BLOWER – 1800 RPM
FAN MODULE 5HP 7.5HP 10HP 15HP 20HP 10HP 15HP 20HP 25 30HP
Capacity (CFM) 2 500 3 500 4 600 5 000 6 000* 4 600 5 000 6 000* 7 500* 9 000*
Recommended number of filter modules 1 to 3 2 to 4 2 to 5 3 to 6 4 to 6 2 to 5 4 to 6 4 to 6 5 to 7 7 to 8
Sound pressure (dB) at 10´ (without a silencer) 82 84 88 92 92 80 81 83 85 87
Inlet diameter (in.) 9 10 12 14 16 12 14 16 18 20
Module weight  (lbs) 200 240 250 340 360 350 450 560 620 680

* Outdoor installation required.



RECOMMENDED NUMBER OF FILTER MODULES : GUIDELINES

BLOWER LIGHT USAGE (under 3 hours a day) MEDIUM USAGE  (3 to 6 hours a day) HEAVY USAGE  (more than 6 hours a day)
HP Coarse Mixed Fine Coarse Mixed Fine Coarse Mixed Fine
5HP 2 2 2 2 2 2 to 3 2 to 3 3 3
7.5HP 2 2 2 2 2 to 3 3 3 3 to 4 4
10HP 3 3 3 3 3 to 4 4 4 to 5 4 to 5 4 to 5
15HP 3 3 3 3 to 4 4 4 to 5 5 5 to 6 6
20HP 4 4 4 4 4 to 5 4 to 5 4 to 5 5 to 6 5 to 6
