Superior performance and efficiency
Details
Fields of application:
- Stress relieving
- Tempering
- Annealing
- Normalizing
- Hardening box furnaces
- Preheating
Features:
- 2300°F (1260°C)
- Heavely hinged 180o or vertical opening door
- High quality insulating brick & fiber board
- Autotuning digital set point temperature controller
- Fast heat up rate and recovery time
- Factory wired, assembled and tested for
Features:
- Hi-limit overshoot protection
- Heavy-duty fire brick hearth with removable hearth plates
- Automatic door switch to turn off the fans
- Heavy 1/4’’ structural frame lined with 16g./hrs
- CSA US/CAN & CE

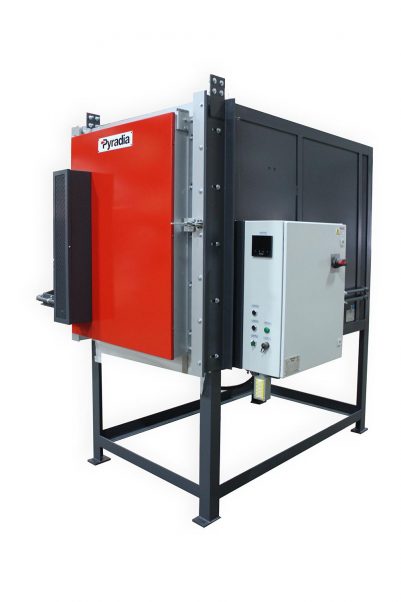

IF Series |
Interior dimensions | Exterior dimensions | ||||||
| Models | Width | Depth | Height | Width | Depth | Height | kW | Weight |
| (in / cm) | (in / cm) | (in / cm.) | (in / cm.) | (in / cm) | (in) | (lbs) approx. | ||
| IF141413 | 13.5 / 34 | 13.5 / 34 | 12.5 / 31 | 41 / 104 | 35.5 / 90 | 55.5 / 140 | 5 | 500 / 226 |
| IF181820 | 18 / 45 | 18 / 45 | 20 / 45 | 45 / 114 | 40 / 101 | 66 / 167 | 9.5 | 850 / 385 |
| IF182725 | 18 / 45 | 27 / 68 | 25 / 63 | 45 / 114 | 49 / 124 | 71 / 180 | 13 | 1250 / 566 |
| IF232320 | 22.5 / 57 | 22.5 / 57 | 20 / 50 | 50 / 127 | 45 / 114 | 67 / 170 | 15 | 1150 / 521 |
| IF233223 | 22.5 / 57 | 31.5 / 80 | 22.5 / 57 | 50 / 127 | 54 / 137 | 70 / 177 | 22 | 1500 / 680 |
| IF272725 | 27 / 68 | 27 / 68 | 25 / 63 | 54 / 137 | 49 / 124 | 72.5 / 184 | 20 | 1600 / 725 |
| IF273230 | 27 / 68 | 31.5 / 80 | 30 / 76 | 54 / 137 | 54 / 132 | 71.5 / 181 | 25 | 1900 / 861 |
| IF275025 | 27 / 68 | 49.5 / 125 | 25 / 63 | 54 / 137 | 72 / 182 | 67 / 170 | 30 | 2400 / 1088 |
| IF363635 | 36 / 91 | 36 / 91 | 35 / 88 | 63 / 160 | 58 / 147 | 76.5 / 194 | 45 | 2600 / 1179 |
| IF365017 | 36 / 91 | 49.5 / 125 | 17 / 43 | 63 / 160 | 72 / 182 | 65 / 165 | 40 | 2700 / 1224 |
| IF414138 | 40.5 / 102 | 40.5 / 102 | 37.5 / 95 | 68 / 172 | 63 / 160 | 79 / 200 | 60 | 3300 / 1495 |
Hi-speed SiCr & FeCrAl box furnaces with guillotine door
Standard models shown here, other sizes available on request. PYRADIA improves its products continuously and may change the specifications without notice.
