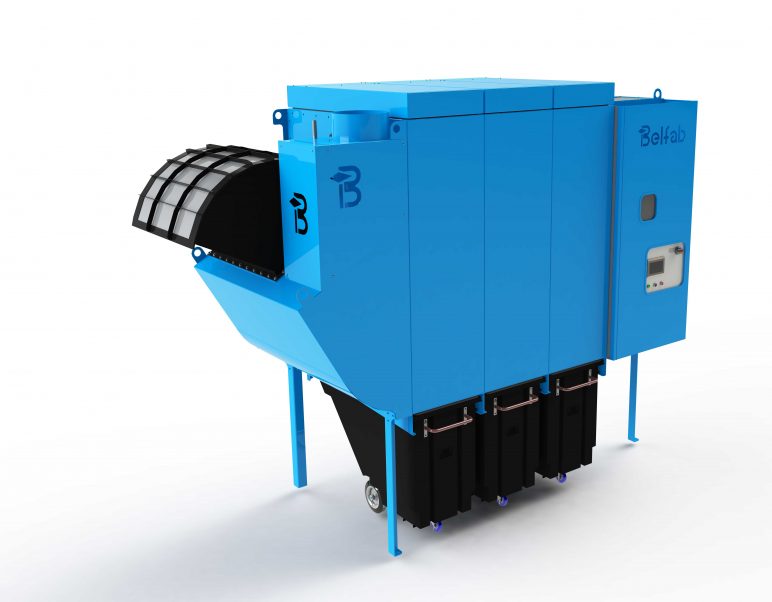

RG SERIES MODULAR PULSE JET DUST COLLECTOR

The RG Series from Belfab is an enclosed modular dust collector equipped with a continuous pulse jet cleaning system with capacities ranging from 1500 to 5000 CFM. Its design meets the most stringent North-American safety regulations for an indoor installation by incorporating flameless venting and a fire extinguishing system as a standard. The unit’s fan is equipped with a variable speed drive which controls the airflow while maximizing energy efficiency. Our engineering team has also developed an HMI (Human Machine Interface) that monitors airflow performance and maintains optimal filter efficiency.

MODULAR FILTER TECHNOLOGY

This equipment has been designed with the concept of modularity. This feature makes it possible to increase filtration surface cost effectively, with the introduction of additional filter modules. This expandable filter module capability makes it possible to offer large filtration surfaces.

WIRELESS COMMUNICATION

Wireless Communication options that will report any abnormal conditions via email or SMS are available with new generation of dust collectors. In fact, the RG Series is equipped with smart sensors designed to collect data and communicate important status information to help you make informed decisions and increase productivity by reducing the risks of equipment downtime.

Details

FEATURES

  • Automatic pulse jet cleaning system
  • 14 cu. ft. plastic tilt truck dust disposal system
  • Automatically activated with the start of your shop’s equipment
  • Premium efficiency TEFC motor
  • Lockable control panel for maintenance
  • Fan located on the clean side
  • CSAus approved

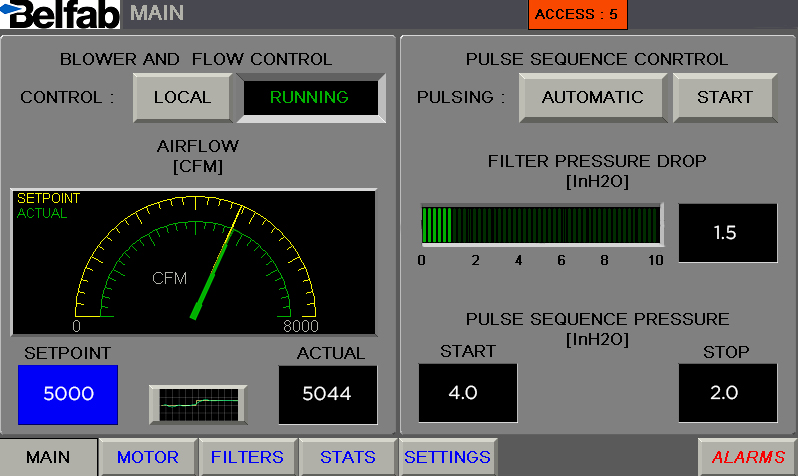

OPERATOR-FRIENDLY INTERFACE

  • Power consumption
  • Amperage in real-time
  • Filter differential static pressure
  • CFM in real-time
  • Status alarms
  • Maintenance warnings
  • Easy start/stop buttons

APPLICATIONS

  • Sanding applications
  • Cutting applications
  • Molding applications
  • Milling applications
  • CNC machines centers

SPECIFICATIONS

Number of filter modules 1 1 2 2 3 3 4 4
Filtration surface (sq.ft) 136 136 272 272 408 408 544 544
Dimensions (A X B X C) 106x61x121 106x61x121 131x61x121 131x61x121 155x61x121 155x61x121 179x61x121 179x61x121
Blower motor (HP) 5 7.5 7.5 10 10 15 15 20
Capacity (CFM) 1500 2000 2000 2500 2500 4000 4000 5000
Filtration ratio 11 14.7 7.35 9.2 6.12 9.8 7.35 9.1
Static pressure (in.w.g.) 8 (11) 9 (12) 9 (12) 9 (12) 9 (12) 10 (13) 10 (13) 13 (16)
Inlet diameter (in.) 14 14 14 14 14 14 14 14
Weight (lbs) 2240 2240 2735 2735 3230 3230 3725 3725
