Belt-driven blowers

The belt-driven blower series from Belfab is ideal for requests involving major projects requiring 15,000 CFM or more. This blower configuration offers a more quiet operation and is also more flexible in terms of RPM speed.

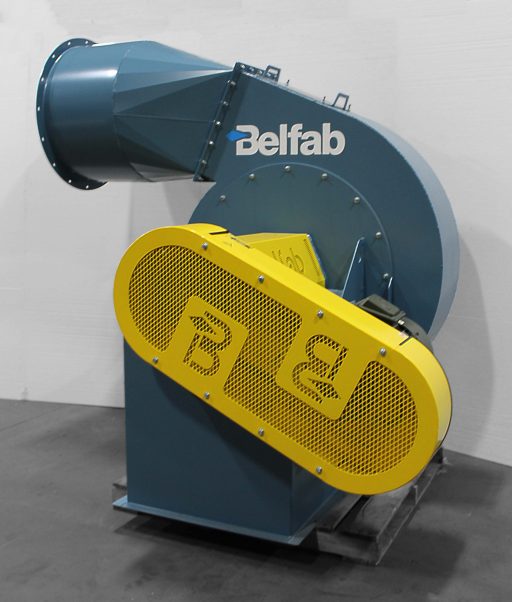

RSC / RSO BLOWERS

RSC/RSO blowers are typically installed before the dust collector and are used for the transportation of materials. They develop airflow capacities between 1,000 & 140,000 CFM at static pressures ranging from 1 to  16” of water and can hold motors ranging from 3 HP to 500 HP.

The RSC/RSO blowers are equipped with two inspections doors at the wheel, a shaft guard and a belt guard. Furthermore, the motor platform is equipped with a treaded rod to ease the motor adjustment and to set the tension of the transmission belt. The bolt-on construction of RSC/RSO blowers allows different orientations of the exhaust, offering greater flexibility.

The RSC/RSO fan wheels are available in steel as standard equipment and stainless steel or aluminum as an option. Both clockwise and counter clockwise configurations are available.

The RSC fan wheel is specially designed for systems transporting  moderated loads of dust, powder and particles.

The RSO fan wheel is designed for heavy duty and abrasive applications and is used in systems transporting large quantities of  coarse dust, chips and filamentous materials.

RBI BLOWERS

RBI blowers are typically installed after the dust collector and in a clean air system. They develop airflow capacities between 1,000 & 140,000 CFM at static pressures ranging from 1 to 18” of water and can hold motors  from 3 to 500 HP.

The RBI blowers are equipped with two inspections doors at the wheel, a shaft guard and a belt guard. Their heavy-duty built ensures minimum vibration and resonance. Furthermore, the motor platform is equipped with a treaded rod to ease the motor adjustment and to set the tension of the transmission belt. The bolt-on construction of RBI blowers allows different orientations of the exhaust, offering greater flexibility.

The RBI fan wheel is available in steel as standard equipment and stainless steel or aluminum as an option. The RBI fan wheel increases the efficiency of the blower because it requires less HP to produce the same amount of CFM, resulting in greater energy savings. Furthermore, the inclination of the blades results in a more silent blower. Both clockwise and counter clockwise configurations are available.

Details

PICTURE 2

RSC Fan wheel

PICTURE 3

RSO Fan wheel

PICTURE 4

RBI Fan wheel

BELFAB BLOWERS FEATURES

  • All our blowers are factory assembled for a complete testing of the equipment.
  • The RSC/RSO & RBI blowers are statistically and dynamically balanced.
  • Large range of fan wheels available to meet your requirements and maximise efficiency .
  • Our blowers are designed to ease the access to the motor, fan wheel and bearings, assuring simple installation and maintenance.
  • Our standard blowers are designed to handle air at temperatures up to 200°F.
  • Custom-engineered blowers can handle air at temperatures as high as 2000°F.
  • The motors of our blowers are TEFC type, CSA & UL approved.
  • The shafts of the RSC/RSO and RBI blowers are made from AISI 1040 TGP steel.
  • A variety of accessories can be added to our blowers.
