DW open modular dust collector

The DW model is engineered as a compact and high efficiency modular dust collector solution, offering a height of less than 11’. This unit is designed to operate as either a dedicated “stand alone”, or main dust collector within a woodworking facility.

MODULAR FILTER TECHNOLOGY

The DW open system design integrates BELFAB modular filter technology. This feature makes it possible to increase filtration surface cost effectively, with the introduction of additional filter modules.

This expandable filter module capability makes it possible to offer large filtration surfaces, capable of developing an air to cloth ratio better than 6:1. This feature makes it ideal for dust collection application involving moderate to large dust volume in either coarse or fine material.

Details

PATENTED UPGRADABLE BLOWER

The BELFAB open dust collector modular series comes with our patented upgradable blower, that makes it possible to increase blower performance (on our standard blower) from a 5HP/2500CFM to a 20HP/ 6000 CFM MAX by simply replacing motor and impeller within the same fan housing. Our optional HUMMER 1800 RPM fan offers super quiet operation at up to 9000 CFM* (see note).

*up to 5000 CFM for indoor installation. Above 5,000 CFM an outdoor set up is required  (NFPA 664)

In application where there is a requirement for low sound level (under 84 db), BELFAB HUMMER series is available for application ranging from 10HP to 20HP 5000 CFM.

FEATURES

  • Low maintenance direct drive centrifugal fan
  • High efficiency TEFC motor, CSA-UL or CSA-US approved
  • High efficiency needle felt filter bags
  • Drum attachment includes a filter sleeve and a quick release clamp
  • The unit is configured for push application only

OPTIONS

  • Extended legs for maximum dust disposal and easier access under the dust collector (height increased by 2 feet)
  • Silencer for standard blower configuration
  • Pre-wired magnetic starter

FILTER MODULES ARRANGEMENTS

Number of filter modules 1 2 3 4 5 6
Filtration surface (sq.ft.) 70 140 210 280 350 420
Dimension   (W x D X H) in. 48” x 48”x 130” 72” x 48”x 130” 96” x 48”x 130” 120” x 48” x 130” 144” x 48”x 130” 168” x 48”x 130”
Module weight (lbs) 250 500 750 1000 1250 1500

( Note: When equipped with a hummer blower module, add 18” to width)

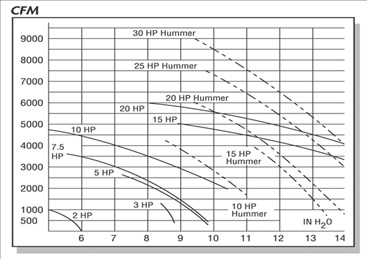

STANDARD BLOWER – 3600RPM HUMMER BLOWER – 1800 RPM
FAN MODULE 5HP 7.5HP 10HP 15HP 20HP 10HP 15HP 20HP
Capacity (CFM) 2 500 3 500 4 600 5 000 6 000 4 600 5 000 6 000
Recommended number of filter modules 1 to 3 2 to 4 2 to 5 3 to 6 4 to 6 2 to 4 3 to 6 4 to 6
Sound pressure (dB) at 10´ (without a silencer) 82 84 88 92 92 80 81 83
Inlet diameter (in.) 9 10 12 14 16 12 14 16
Module weight  (lbs) 200 240 250 340 360 350 450 560





BLOWER LIGHT USAGE (under 3 hours a day) MEDIUM USAGE  (3 to 6 hours a day) HEAVY USAGE  (more than 6 hours a day)
HP Coarse Mixed Fine Coarse Mixed Fine Coarse Mixed Fine
5HP 1 1 1 1 2 2 2 3 3
7.5HP 1 1 1 1 2 2 2 3 4
10HP 2 2 2 2 2 2 2 3 4
15HP 3 3 3 3 3 3 3 4 4
20HP 4 4 4 4 4 4 5 5 6
